The MCP Inspector provides a complete testing environment for your MCP server. Manually invoke tools, read resources, fetch prompts, and view all JSON-RPC messages between MCPJam and your server.
The Tools, Resources, and Prompts tabs only load data when the selected server is connected. If the server is disconnected, the tabs clear any previously loaded primitives and display a prompt to reconnect. Refresh, run, and read actions are disabled until the server is connected again.

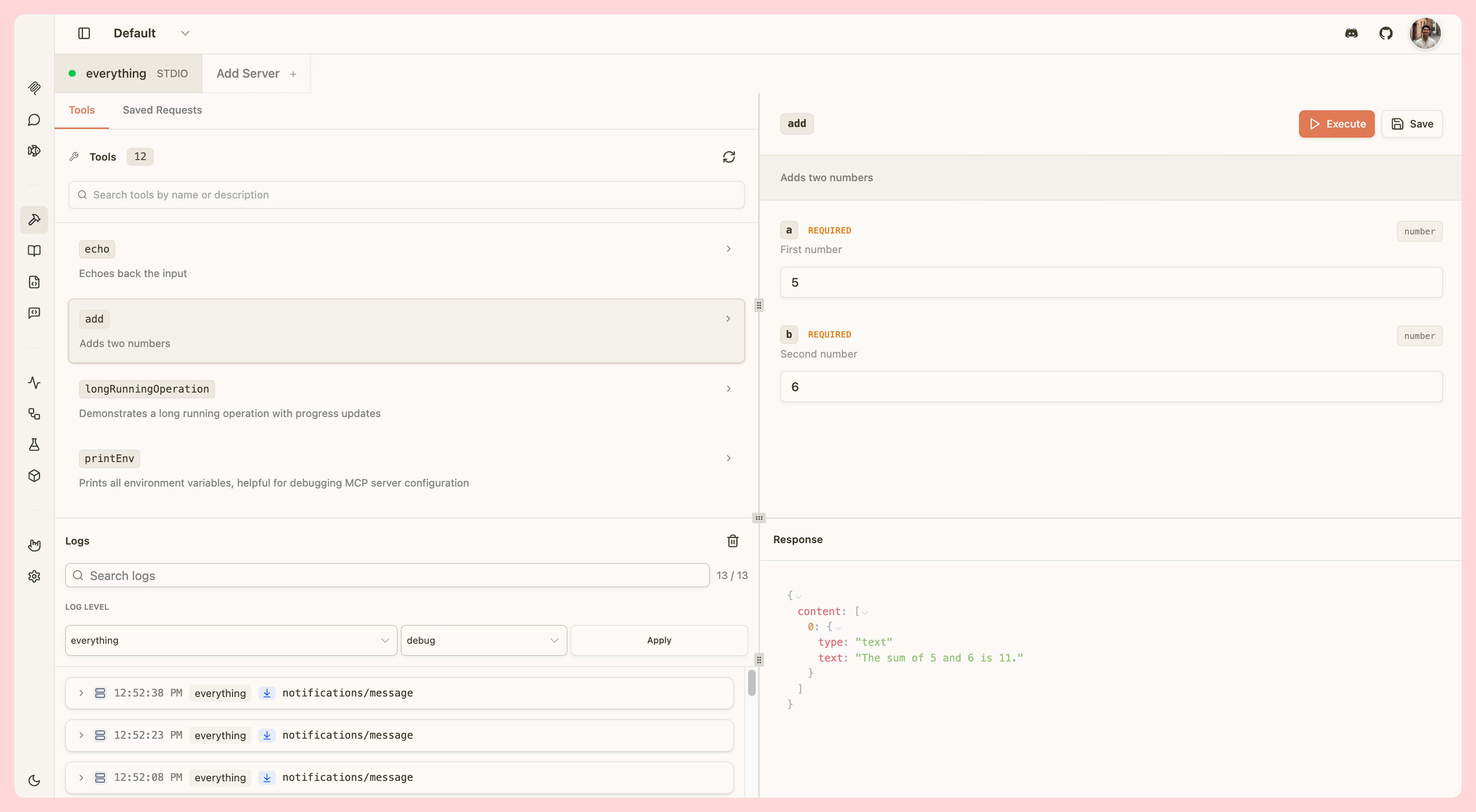

MCPJam MCP Inspector

​
Tools

Test your MCP tools by manually invoking them with custom parameters:
  • View all tools - Browse tool names, descriptions, and parameters
  • Search tools - Quickly find specific tools by name
  • Invoke tools - Trigger tools with custom input parameters
  • View results - See tool outputs, including widget responses for ChatGPT apps and MCP apps
  • Elicitation support - Handle elicitation requests from tools with a spec-complete form dialog
  • Multi-round input - Tools that return input_required (MCP 2026-07-28) collect the needed input through the same dialog and retry automatically
  • Save requests - Save frequently used tool invocations for quick testing
  • Quality badges - See per-tool quality indicators in the sidebar for tools with definition issues

​
Elicitation requests

When a tool triggers an MCP elicitation request, a dialog appears asking you to provide additional input. The dialog renders a form built from the server’s schema and supports the full MCP elicitation subset:
  • Field labels and defaults — Fields show the schema title when provided (the raw property key stays visible alongside it). Schema default values are pre-filled automatically.
  • Field types — Strings, numbers, integers, booleans (checkbox), single-select dropdowns, and multi-select checkbox lists are all rendered natively. Fields with format: email, uri, date, or date-time use the matching browser input type.
  • Inline validation — Clicking Accept validates all fields before submitting. Required fields, numeric minimum/maximum, string minLength/maxLength, pattern, and format constraints are all checked. Errors appear under the relevant field and block submission until resolved.
  • Server identity — The dialog header identifies which server is requesting information. When the server supplies both a name and an ID, both are shown — the ID is the trusted anchor and is always visible.
  • Unsupported shapes — Nested objects and other schema shapes outside the MCP elicitation spec fall back to a plain JSON textarea so you can still answer by hand.
Decline and Cancel are always available and bypass validation — they send the corresponding action to the server without any parameters.

​
Multi-round input (MCP 2026-07-28 input_required)

When a tool call returns an input_required result (MCP 2026-07-28 §12), the inspector collects the embedded elicitation input through the same dialog and automatically retries the original call with your answers. This is distinct from the legacy elicitation/create flow:
  • Dialog title — shows “Operation Needs Input” (vs “Elicitation Request” for legacy requests).
  • Dialog header — reads “[server] needs input to continue” (vs “[server] is requesting information”).
  • Multiple keys per round — if the server embeds more than one input request in a single round, the dialog walks through them one at a time and submits all answers together.
  • Automatic retry — after you respond, the inspector retries the original tools/call with your answers attached. You do not need to re-invoke the tool manually.
  • Decline and Cancel — send the corresponding action back to the server; the server decides whether to abort or continue.
This behavior applies to local connections. The inspector must be connected to the server before the tool is invoked; the elicitation capability is advertised at connect time.

​
OAuth scope step-up on tool calls

When a tool call returns a 403 insufficient_scope error, the Tools tab automatically triggers a re-authorization flow. Inspector unions the scopes from your original OAuth grant with the scopes the server challenged, then redirects you to the authorization server to approve the expanded set. After you return from the consent screen, re-run the tool. The step-up is bounded per browser session: if re-authorization does not resolve the scope error after the allowed number of attempts, Inspector surfaces the error instead of redirecting again. The counter resets when a tool call succeeds, so a future legitimate scope challenge starts fresh. Opening a new browser session also resets the counter.
Runtime scope step-up is only available on the local (non-hosted) tool-call surface. The hosted path does not yet forward the scope challenge.

​
Tool quality badges

When enabled, each tool in the sidebar may display a small badge showing the number of quality findings for that tool: Hover over a badge to see the full list of findings. Tools with no issues show no badge. Saved requests are stored in your browser’s local storage and accessible from the Saved Requests tab.

​
Agent visibility

When the Tools tab is open, agents can observe its state through ui_snapshot_app: the tool list (names only, up to 30), the currently selected tool and its parameter names, the saved request count, and whether a result is present. Tool execution is handled by the global ui_execute_tool — no separate screen tool is needed.

​
Resources

Inspect your MCP server’s resources:
  • Browse resources - View all available resources with names, URIs, and MIME types
  • Read resources - Fetch and view resource content
  • Resource templates - Test templated resources with dynamic parameters
  • Multi-round input - Resources that return input_required (MCP 2026-07-28) collect the needed input through the elicitation dialog and retry the read automatically

​
Agent tool: ui_read_resource

When the Resources tab is open and a server is connected, agents can read resources through the ui_read_resource tool. It mirrors exactly what the Read button does. Pass a concrete resource’s URI or name, or a resource template’s name or URI template. For templates, supply templateArguments as a string-to-string map to fill the RFC 6570 parameters.
Large or binary resource bodies are truncated in the tool result to keep the transcript bounded. The full content is always visible on screen. Use ui_snapshot_app to list available resources and templates before calling this tool.

​
Prompts

Test your MCP prompts:
  • View prompts - Browse prompt names, descriptions, and parameters
  • Fetch prompts - Retrieve prompt content with custom arguments
  • Use in Playground - Type / in the Playground to insert prompts directly into the conversation
  • Multi-round input - Prompts that return input_required (MCP 2026-07-28) collect the needed input through the elicitation dialog and retry the fetch automatically

​
Agent tool: ui_get_prompt

When the Prompts tab is open and a server is connected, agents can render prompts through the ui_get_prompt tool. It mirrors exactly what the Run button does. Pass a prompt’s name or title as shown in the list. Supply arguments as a string-to-string map for prompts that take parameters.
Rendered messages are truncated in the tool result to keep the transcript bounded. The full render is always visible on screen. Use ui_snapshot_app to list available prompts before calling this tool.

​
JSON-RPC Logging

All communication between MCPJam and your MCP server is logged in real-time:
  • Request/response pairs - View complete JSON-RPC messages
  • Message types - See tool calls, resource reads, prompt fetches, and more
  • Error tracking - Inspect errors and validation issues
  • Timestamps - Track message timing and performance
The JSON-RPC logger helps you debug your MCP server implementation and understand the complete protocol flow.

​
OAuth log entries

When a server uses OAuth, each step of the OAuth flow appears as a log entry in the traffic log alongside regular JSON-RPC messages. Use the Source filter dropdown and select OAuth to show only OAuth entries. Each OAuth log entry displays a status indicator: Click any entry to expand it and inspect the full step payload, including HTTP request and response details.
